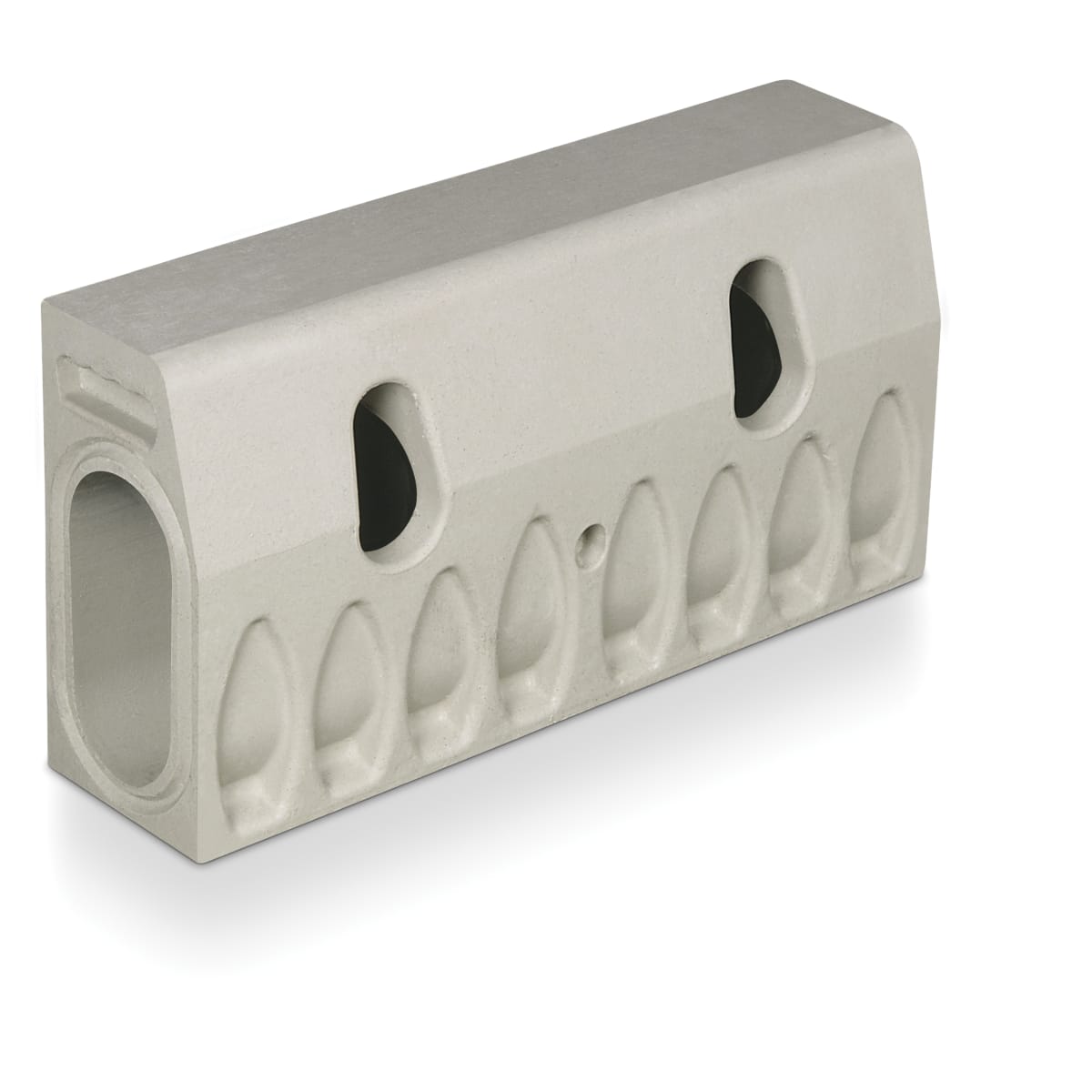

ACO KerbDrain® HB255 Half Battered Profile Drainage Channel 500mm D 400
SKU: ACOP7958
KerbDrain is an award winning combined kerb and drainage system specifically designed and developed to form an integral part of any modern, sustainable surface water management solutionThe KerbDrain channels are manufactured from Vienite, ACO's lightweight material containing recycled content. Independently UKCA and CE marked to BS EN 1433:2002, the one-piece system is suitable for a wide range of applications including major and minor highways, car parks, and commercial and urban landscaping.The system also benefits from an extensive range of problem-solving components including; perforated and flush centre stones, drop kerbs, radius and mitred units, internal angles, quadrants, and bus stop units.ACO KerbDrain has a range of units to match HB1, HB2 and 45° splayed profiles, and a selection of depths and lengths to meet the hydraulic and performance requirements of many highways or drainage schemes.
Features & benefits
- Certified for all highways applications
- Impact resistance 50% higher than OPC kerb units
- Manufactured from sustainable material
- SUDS compliant
- Full range of problem solving components for all sizes
- ACO KerbDrain units are available in half battered (HB) or splayed (SP) profiles to BS EN 1340:2003
- Capacity choices optimise hydraulic performance
- One piece combined kerb and drainage system
- Available in 255mm, 280mm, 305mm, 380mm, 405mm and 480mm depths
- Complies with IAN 117/08, Clause 516 SHW and is Kitemarked to BS EN 1433:2002 for highway use
IDACOP7958
Electrics & Plumbing > Drainage > Below Ground Drainage > ACO KerbDrain® HB255 Half Battered Profile Drainage Channel 500mm D 400
https://www.jewson.co.uk/p/aco-kerbdrain-hb255-half-battered-profile-drainage-channel-500mm-d-400-ACOP7958
Get lower prices with a Jewson account
£150.31
inc VAT, Each
125.26
http://schema.org/InStock
Please sign in/register to save items.
KerbDrain is an award winning combined kerb and drainage system specifically designed and developed to form an integral part of any modern, sustainable surface water management solutionThe KerbDrain channels are manufactured from Vienite, ACO's lightweight material containing recycled content. Independently UKCA and CE marked to BS EN 1433:2002, the one-piece system is suitable for a wide range of applications including major and minor highways, car parks, and commercial and urban landscaping.The system also benefits from an extensive range of problem-solving components including; perforated and flush centre stones, drop kerbs, radius and mitred units, internal angles, quadrants, and bus stop units.ACO KerbDrain has a range of units to match HB1, HB2 and 45° splayed profiles, and a selection of depths and lengths to meet the hydraulic and performance requirements of many highways or drainage schemes.
Features & benefits
- Certified for all highways applications
- Impact resistance 50% higher than OPC kerb units
- Manufactured from sustainable material
- SUDS compliant
- Full range of problem solving components for all sizes
- ACO KerbDrain units are available in half battered (HB) or splayed (SP) profiles to BS EN 1340:2003
- Capacity choices optimise hydraulic performance
- One piece combined kerb and drainage system
- Available in 255mm, 280mm, 305mm, 380mm, 405mm and 480mm depths
- Complies with IAN 117/08, Clause 516 SHW and is Kitemarked to BS EN 1433:2002 for highway use
Specifications
| Product Name | ACO KerbDrain® HB255 Half Battered Profile Drainage Channel 500mm D 400 |
| Brand | KerbDrain |
| Product Type | Drainage Channels |
| Manufacturer Name | ACO Technologies |
| Manufacturer Part Number | 7958 |
| EAN | 5030810079588 |
| Compliance Approvals | UKCA, CE |
| Warranty Period | 12 months |
| Materials | Polymer Concrete |
| Commercial Or Domestic Use | Commercial |
| Colour | Natural |
| Application | Below Ground Drainage |
| Pack Quantity | 1 |
| Applicable Standards | BS EN 1433:2002 |
| Recyclable | Yes |
| Renewable | Yes |
| Product Width | 125 mm |
| Product Weight | 18.5 kg |
| Product Height | 255 mm |
| Product Length | 500 mm |
