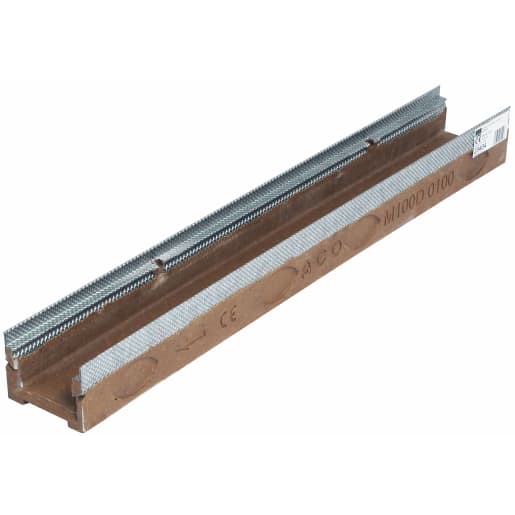

ACO MultiDrain® M100D No. 0100 Shallow Drainage Channel with Galvanised Rail 1000mm D 400
SKU: ACO23110
ACO MultiDrain MD is a high strength channel drainage system designed to provide an economical solution for the efficient removal of surface water.The system is suitable for use in a wide range of applications including commercial and residential developments, pedestrian precincts, landscaping and parking areas for all vehicle types. The channel unit is manufactured from Vienite, ACO’s high strength polymer concrete and forms the main component of the system. ACO MultiDrain MD is a tough and robust channel drainage system which provides high chemical resistance and the lightweight design ensures quick and easy installation. As standard, channels are manufactured with UltraSTEEL protective edge rails. The UltraSTEEL rails, with their unique patented design, provide optimum channel protection and improved bonding between the channel sides and the surrounding pavement material.The system is fully certificated, UKCA and CE marked to BS EN 1433:2002 from Load Class A 15 pedestrian areas, up to and including Load Class D 400 suitable for parking of all types of road vehicles.
Features & benefits
- Provides an efficient drainage solution for a wide variety of applications
- Strong and robust V shaped channel design with a range of constant, sloped and shallow depth channels
- Strong and light weight design, with male and female channel connections to aid accurate installation
- Channel system available in three channel widths: 100mm, 150mm and 200mm
- Channel unit manufactured from Vienite, ACO’s high strength polymer concrete
- Protective UltraSTEEL galvanised edge rails for improved strength and bonding between channel and surface materials. Also available in stainless steel
- Strong and light weight design improves stability and anchors product into concrete surround
- Sealant groove for simple watertight installations
- ACO Drainlock gratings - this bar-less locking device improves hydraulic capacity and provides for quick and simple installation of gratings
- Male and female channel connections to aid accurate installation
IDACO23110
Electrics & Plumbing > Drainage > Below Ground Drainage > ACO MultiDrain® M100D No. 0100 Shallow Drainage Channel with Galvanised Rail 1000mm D 400
https://www.jewson.co.uk/p/aco-multidrain-m100d-no-0100-shallow-drainage-channel-with-galvanised-rail-1000mm-d-400-ACO23110
Get lower prices with a Jewson account
£108.06
inc VAT, Each
90.05
http://schema.org/InStock
Please sign in/register to save items.
ACO MultiDrain MD is a high strength channel drainage system designed to provide an economical solution for the efficient removal of surface water.The system is suitable for use in a wide range of applications including commercial and residential developments, pedestrian precincts, landscaping and parking areas for all vehicle types. The channel unit is manufactured from Vienite, ACO’s high strength polymer concrete and forms the main component of the system. ACO MultiDrain MD is a tough and robust channel drainage system which provides high chemical resistance and the lightweight design ensures quick and easy installation. As standard, channels are manufactured with UltraSTEEL protective edge rails. The UltraSTEEL rails, with their unique patented design, provide optimum channel protection and improved bonding between the channel sides and the surrounding pavement material.The system is fully certificated, UKCA and CE marked to BS EN 1433:2002 from Load Class A 15 pedestrian areas, up to and including Load Class D 400 suitable for parking of all types of road vehicles.
Features & benefits
- Provides an efficient drainage solution for a wide variety of applications
- Strong and robust V shaped channel design with a range of constant, sloped and shallow depth channels
- Strong and light weight design, with male and female channel connections to aid accurate installation
- Channel system available in three channel widths: 100mm, 150mm and 200mm
- Channel unit manufactured from Vienite, ACO’s high strength polymer concrete
- Protective UltraSTEEL galvanised edge rails for improved strength and bonding between channel and surface materials. Also available in stainless steel
- Strong and light weight design improves stability and anchors product into concrete surround
- Sealant groove for simple watertight installations
- ACO Drainlock gratings - this bar-less locking device improves hydraulic capacity and provides for quick and simple installation of gratings
- Male and female channel connections to aid accurate installation
Specifications
| Product Name | ACO MultiDrain® M100D No. 0100 Shallow Drainage Channel with Galvanised Rail 1000mm D 400 |
| Brand | MultiDrain |
| Product Type | Drainage Channels |
| Manufacturer Name | ACO Technologies |
| Manufacturer Part Number | 23110 |
| EAN | 5030810231108 |
| Compliance Approvals | UKCA, CE |
| Warranty Period | 12 months |
| Materials | Polymer Concrete |
| Commercial Or Domestic Use | Domestic |
| Colour | Black |
| Application | Below Ground Drainage |
| Pack Quantity | 1 |
| Applicable Standards | BS EN 1433:2002 |
| Recyclable | Yes |
| Renewable | Yes |
| Product Width | 135 mm |
| Product Weight | 11 kg |
| Product Height | 100 mm |
| Product Length | 1000 mm |
