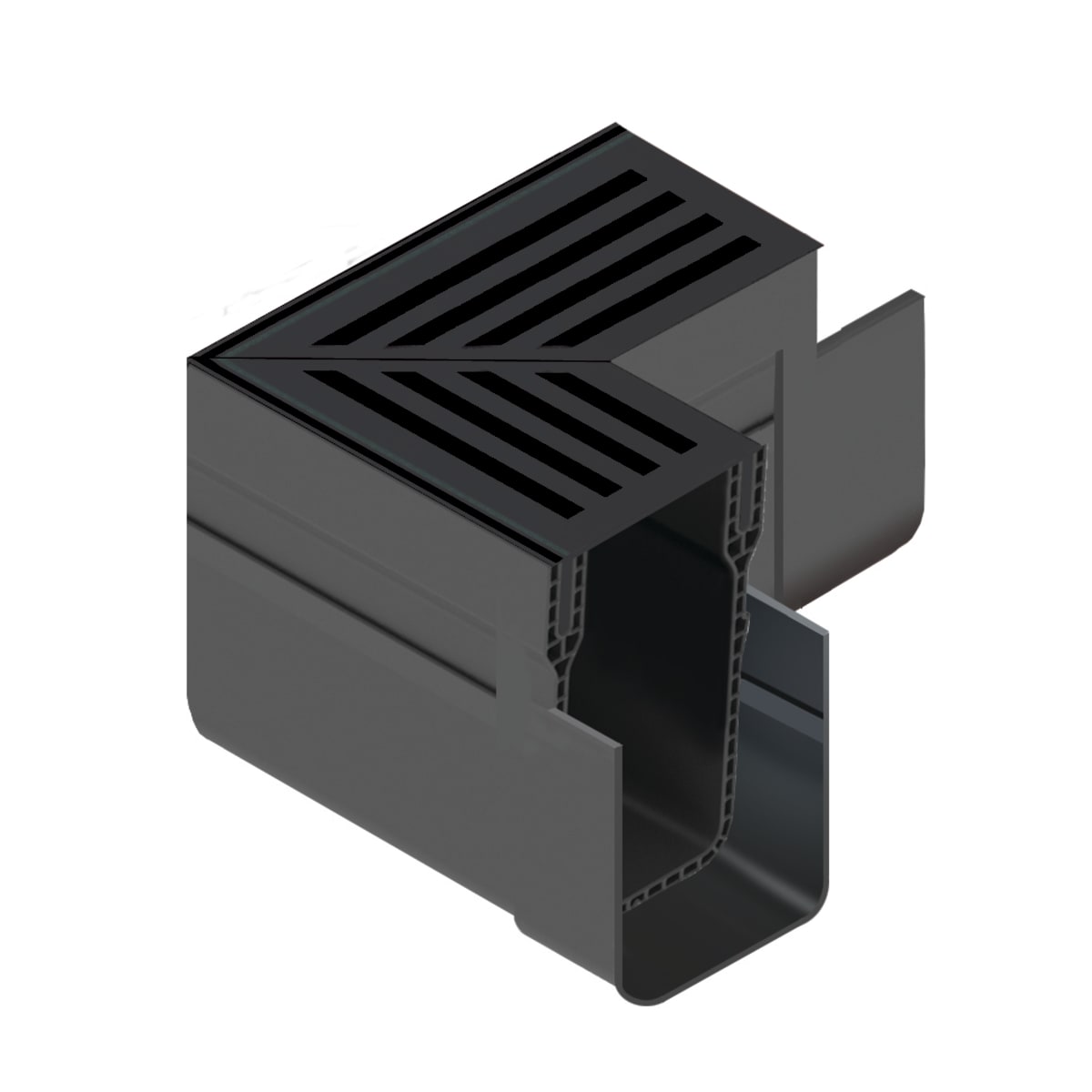

ACO Threshold Drain Corner Unit Assembly with Aluminium Grating Black
SKU: DRACO787
Manufactured from extruded plastic with an aluminium or steel grating, Threshold Drains eliminate water ponding at house entrances, or around your patio.Supplied complete with either a silver or black aluminium, CorTen steel or stainless steel Heelguard grating suitable for pedestrian traffic.The discreet system has a width of 60mm and is available in 1m lengths.With a range of accessories available from corner units to ø110mm vertical outlets, making them ideal for a modern patio drainage system.Suitable for use in Building Regulations Part M compliant installations in England and Wales and Building Standards Section 4 compliant installations in Scotland.
Features & benefits
- Quick and easy installation
- Removable Heelguard aluminium grating available in silver or black
- Modern styling
- Outlet available for connection to underground drainage
- UKCA and CE marked and fully certified to Load Class A 15 BS EN 1433:2002
- System ideal for use with 60mm block paving
- Body of the unit manufactured from extruded plastic
- Suitable for use in Building Regulations Part M compliant installations in England and Wales and Building Standards Section 4 compliant installations in Scotland
IDDRACO787
Electrics & Plumbing > Drainage > Below Ground Drainage > ACO Threshold Drain Corner Unit Assembly with Aluminium Grating Black
https://www.jewson.co.uk/p/aco-threshold-drain-corner-unit-assembly-with-aluminium-grating-black-DRACO787
Get lower prices with a Jewson account
£57.06
inc VAT, Each
47.55
http://schema.org/InStock
Please sign in/register to save items.
Manufactured from extruded plastic with an aluminium or steel grating, Threshold Drains eliminate water ponding at house entrances, or around your patio.Supplied complete with either a silver or black aluminium, CorTen steel or stainless steel Heelguard grating suitable for pedestrian traffic.The discreet system has a width of 60mm and is available in 1m lengths.With a range of accessories available from corner units to ø110mm vertical outlets, making them ideal for a modern patio drainage system.Suitable for use in Building Regulations Part M compliant installations in England and Wales and Building Standards Section 4 compliant installations in Scotland.
Features & benefits
- Quick and easy installation
- Removable Heelguard aluminium grating available in silver or black
- Modern styling
- Outlet available for connection to underground drainage
- UKCA and CE marked and fully certified to Load Class A 15 BS EN 1433:2002
- System ideal for use with 60mm block paving
- Body of the unit manufactured from extruded plastic
- Suitable for use in Building Regulations Part M compliant installations in England and Wales and Building Standards Section 4 compliant installations in Scotland
Specifications
| Product Name | ACO Threshold Drain Corner Unit Assembly with Aluminium Grating Black |
| Brand | Threshold Drain |
| Product Type | Drainage Channels |
| Manufacturer Name | ACO Technologies |
| Manufacturer Part Number | 19007 |
| EAN | 5030810190078 |
| Compliance Approvals | UKCA, CE |
| Warranty Period | 12 months |
| Materials | Polypropylene |
| Commercial Or Domestic Use | Domestic |
| Colour | Black |
| Application | Below Ground Drainage |
| Pack Quantity | 1 |
| Applicable Standards | BS EN 1433:2002 |
| Recyclable | Yes |
| Renewable | Yes |
| Product Width | 61 mm |
| Product Weight | 0.4 kg |
| Product Height | 100 mm |
| Product Length | 159 mm |
