Airflow DV65 Entro-V MVHR Kit For 116m² Dwelling - 2 Pallets
SKU: AIR91654
The Entro-V ventilation units with heat recovery are available for a large variety of building sizes. The supply and extract of air to and from rooms is done through antistatic smooth bore, with the hygienically lined AirflexPro ducting ensuring minimal in-duct airflow noise and dirt accumulation. It is supplied economically straight from the roll, and the durable, ribbed outer skin of AirflexPro offers excellent flexibility, strength and compressibility, up to 10 kN/m2. These properties make it ideally suited for embedding straight into concrete screed without distortion, ensuring predicted airflow rates through ducts are maintained. The smallest sized unit in the range, Entro-V DV65 supplies up to 242 m3/h (67.2 l/s). Hanging brackets, screws, and feet are supplied with the unit which has interchangeability of spigots position from top to the sides. In addition to the high-quality individual ventilation components, an overall integrated concept is essential to a well-functioning ventilation system. Airflow offers the ideal ventilation system solutions and guarantees easy design, safe installation and maximum efficiency. Customer will need forklift or multiple people to offload (due to size/weight)
Features & benefits
- 242 m3 /h (67.2 l/s) maximum air flow rate @100Pa
- Complete domestic and residential heat recovery ventilation system
- Thermal efficiency capabilities of up to 85%
- 2x ISO ePM Coarse 55% (G4) filters as standard with an extra supply air filter location for an optional ISO ePM1 60% (F7) - ISO 16890 compliant
- Suitable for left/right-hand configurations and can be installed in vertical mounting positions, on the wall or floor
- Ideal ventilation system solution for easy design, safe installation and maximum efficiency

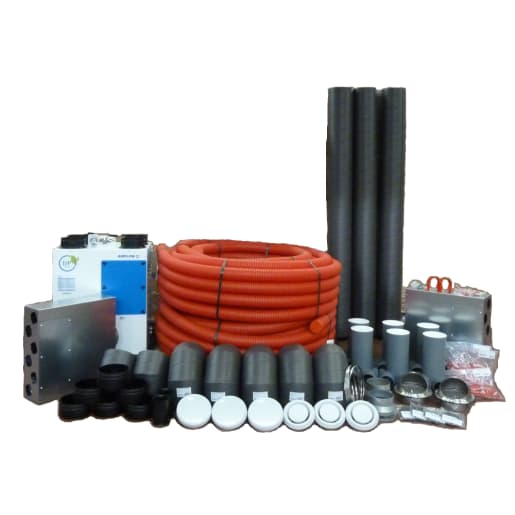

- Kit includes AirflexPro radial ducting system, suited to a new build and retrofit market
- Reduces overall energy and heating bill costs
- Improves indoor air quality as well as helping to prevent mould and mildew build-up
- SAP tested and PCDB listed MVHR unit
IDAIR91654
Electrics & Plumbing > Ventilation > MVHR > Airflow DV65 Entro-V MVHR Kit For 116m² Dwelling - 2 Pallets
https://www.jewson.co.uk/p/airflow-dv65-entro-v-mvhr-kit-116m2-AIR91654
Get lower prices with a Jewson account
£2,638.25
inc VAT, Each
2198.54
http://schema.org/InStock
Please sign in/register to save items.
The Entro-V ventilation units with heat recovery are available for a large variety of building sizes. The supply and extract of air to and from rooms is done through antistatic smooth bore, with the hygienically lined AirflexPro ducting ensuring minimal in-duct airflow noise and dirt accumulation. It is supplied economically straight from the roll, and the durable, ribbed outer skin of AirflexPro offers excellent flexibility, strength and compressibility, up to 10 kN/m2. These properties make it ideally suited for embedding straight into concrete screed without distortion, ensuring predicted airflow rates through ducts are maintained. The smallest sized unit in the range, Entro-V DV65 supplies up to 242 m3/h (67.2 l/s). Hanging brackets, screws, and feet are supplied with the unit which has interchangeability of spigots position from top to the sides. In addition to the high-quality individual ventilation components, an overall integrated concept is essential to a well-functioning ventilation system. Airflow offers the ideal ventilation system solutions and guarantees easy design, safe installation and maximum efficiency. Customer will need forklift or multiple people to offload (due to size/weight)
Features & benefits
- 242 m3 /h (67.2 l/s) maximum air flow rate @100Pa
- Complete domestic and residential heat recovery ventilation system
- Thermal efficiency capabilities of up to 85%
- 2x ISO ePM Coarse 55% (G4) filters as standard with an extra supply air filter location for an optional ISO ePM1 60% (F7) - ISO 16890 compliant
- Suitable for left/right-hand configurations and can be installed in vertical mounting positions, on the wall or floor
- Ideal ventilation system solution for easy design, safe installation and maximum efficiency
- Kit includes AirflexPro radial ducting system, suited to a new build and retrofit market
- Reduces overall energy and heating bill costs
- Improves indoor air quality as well as helping to prevent mould and mildew build-up
- SAP tested and PCDB listed MVHR unit
Specifications
Product Name | Airflow DV65 Entro-V MVHR Kit For 116m² Dwelling - 2 Pallets |
Brand | Entro MVHR |
Product Type | MVHR Kits |
Manufacturer Name | Airflow Developments Ltd |
Manufacturer Part Number | 90001654 |
EAN | 5019009330938 |
Compliance Approvals | ErP compliant; UKCA / CE compliant; SAP tested and PCDB listed |
Warranty Period | 2 years |
Output Power | 100 W |
Commercial Or Domestic Use | Domestic |
Application | Interior |
Pack Quantity | 1 |
Applicable Standards | Part F and Part L of the Building Regulations compliant |
Voltage | 230 V |
Coverage | 116 m2 |
Recyclable | Yes |
Renewable | Yes |

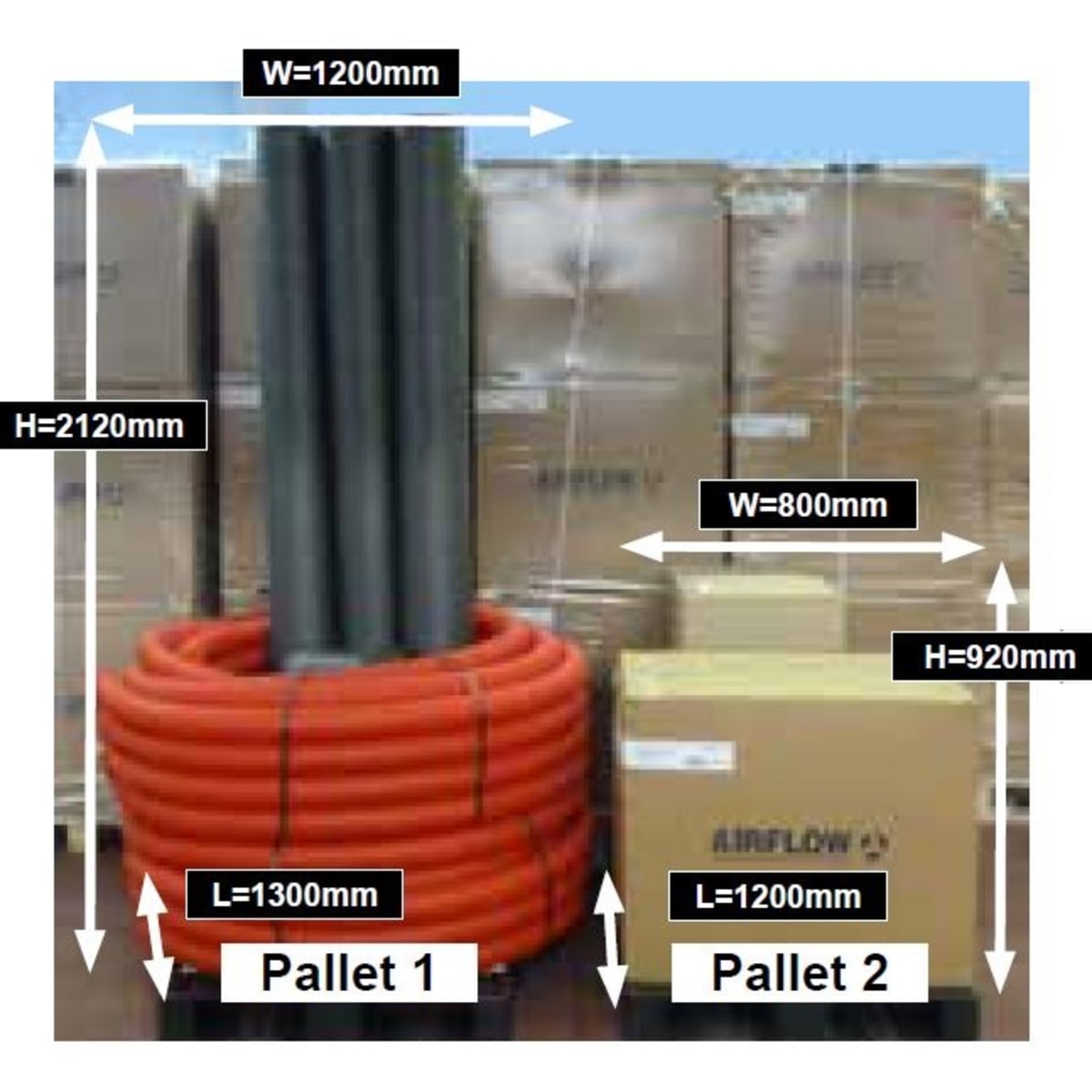

Product Width | 2000 mm |
Product Weight | 126 kg |
Product Height | 2120 mm |
Product Length | 2500 mm |
Product Depth | 430 mm |
Diameter | 160 mm |
Volume | 4.1 m3 |
Cable Length | 3 m |
