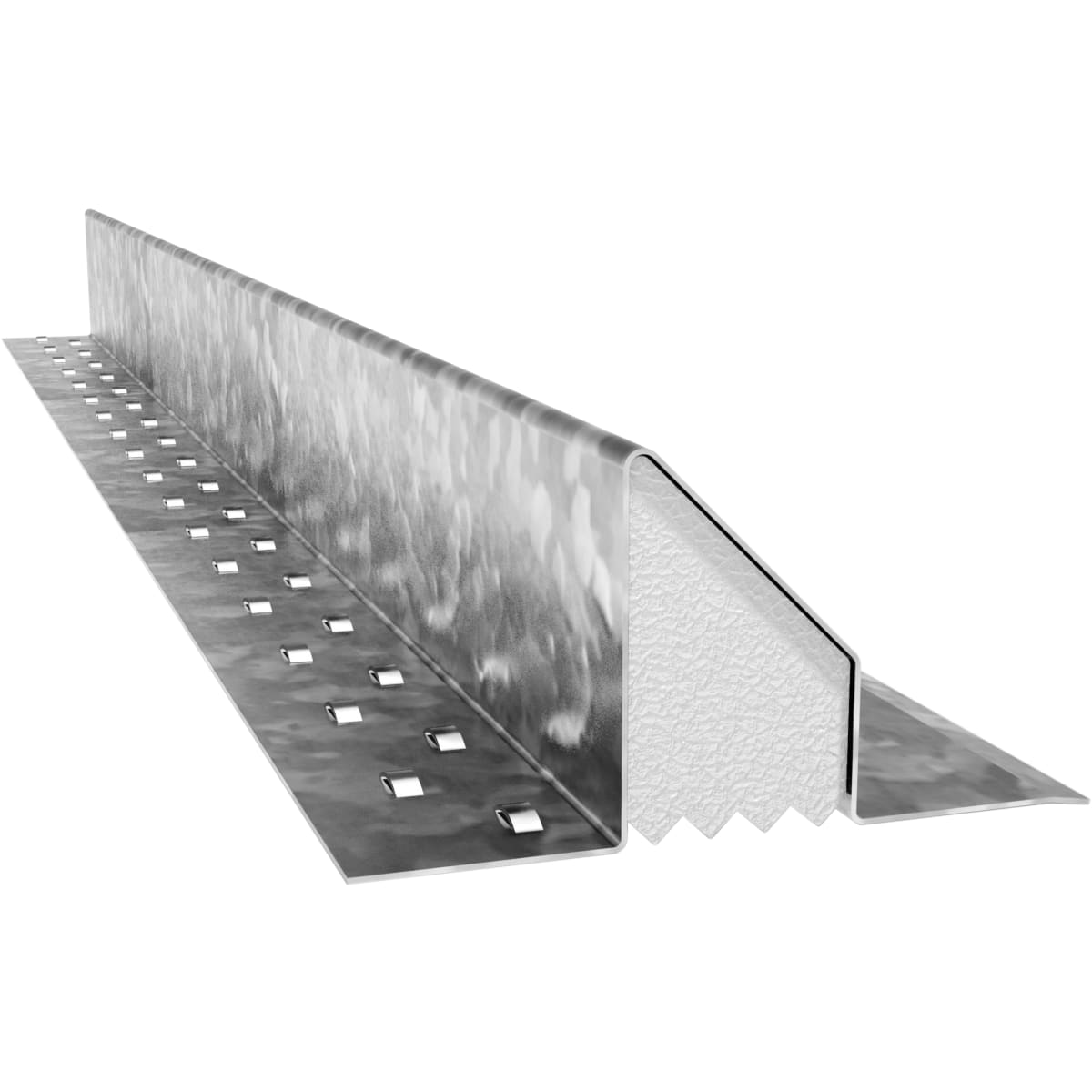

Birtley CB90 Supergalv Cavity Wall Steel Lintel 1950 x 132 x 280mm
SKU: BLCB9020
Birtley Standard Duty Supergalv Cavity Wall Lintel 1950 x 132 x 280mm (L x H x W) is manufactured from mild steel in accordance to BS EN10025-2:2004. The insulation is of expanded polystyrene that comes with a BREEAM rating A+. Has a superior corrosion protection due to the supergalv coating over the hot dip galvanisation. This feature increases the life expectancy and the durability of the lintel. Load bearing capacity is at 17.8kN/m with a defection of 3mm harmonised to BS EN 845‐2:2013.
Features & benefits
- Manufactured from strutural grade steels: S275JR/S355JR to EN10025-2:2004
- Galvanized after fabrication to BS EN 1461:2009 for unrivalled corrosion resistance
- All external cavity wall lintels are insulated with expanded polystyrene to BS EN 13163 to reduce thermal bridging
- Plaster key to inner leaf
- Rainwater drip feature to outer leaf
IDBLCB9020
Building Materials > Lintels > Steel Lintels > Birtley CB90 Supergalv Cavity Wall Steel Lintel 1950 x 132 x 280mm
https://www.jewson.co.uk/p/birtley-standard-duty-supergalv-cavity-wall-lintel-1950-x-132mm-BLCB9020
Get lower prices with a Jewson account
£205.94
inc VAT, Each
171.62
http://schema.org/InStock
Please sign in/register to save items.
Birtley Standard Duty Supergalv Cavity Wall Lintel 1950 x 132 x 280mm (L x H x W) is manufactured from mild steel in accordance to BS EN10025-2:2004. The insulation is of expanded polystyrene that comes with a BREEAM rating A+. Has a superior corrosion protection due to the supergalv coating over the hot dip galvanisation. This feature increases the life expectancy and the durability of the lintel. Load bearing capacity is at 17.8kN/m with a defection of 3mm harmonised to BS EN 845‐2:2013.
Features & benefits
- Manufactured from strutural grade steels: S275JR/S355JR to EN10025-2:2004
- Galvanized after fabrication to BS EN 1461:2009 for unrivalled corrosion resistance
- All external cavity wall lintels are insulated with expanded polystyrene to BS EN 13163 to reduce thermal bridging
- Plaster key to inner leaf
- Rainwater drip feature to outer leaf
Specifications
| Product Name | Birtley CB90 Supergalv Cavity Wall Steel Lintel 1950 x 132 x 280mm |
| Brand | Birtley |
| Manufacturer Name | Birtley |
| Manufacturer Part Number | CB90-1950 |
| Compliance Approvals | CE Marked |
| Materials | Steel |
| Range | Cavity Wall Steel Lintel |
| Colour | Chrome |
| Application | Interior/External |
| Pack Quantity | 1 |
| Country Of Origin | United Kingdom |
| Finish | Galvanised |
| Product Width | 280 mm |
| Product Weight | 8.3 kg |
| Product Height | 132 mm |
| Product Length | 1950 mm |
