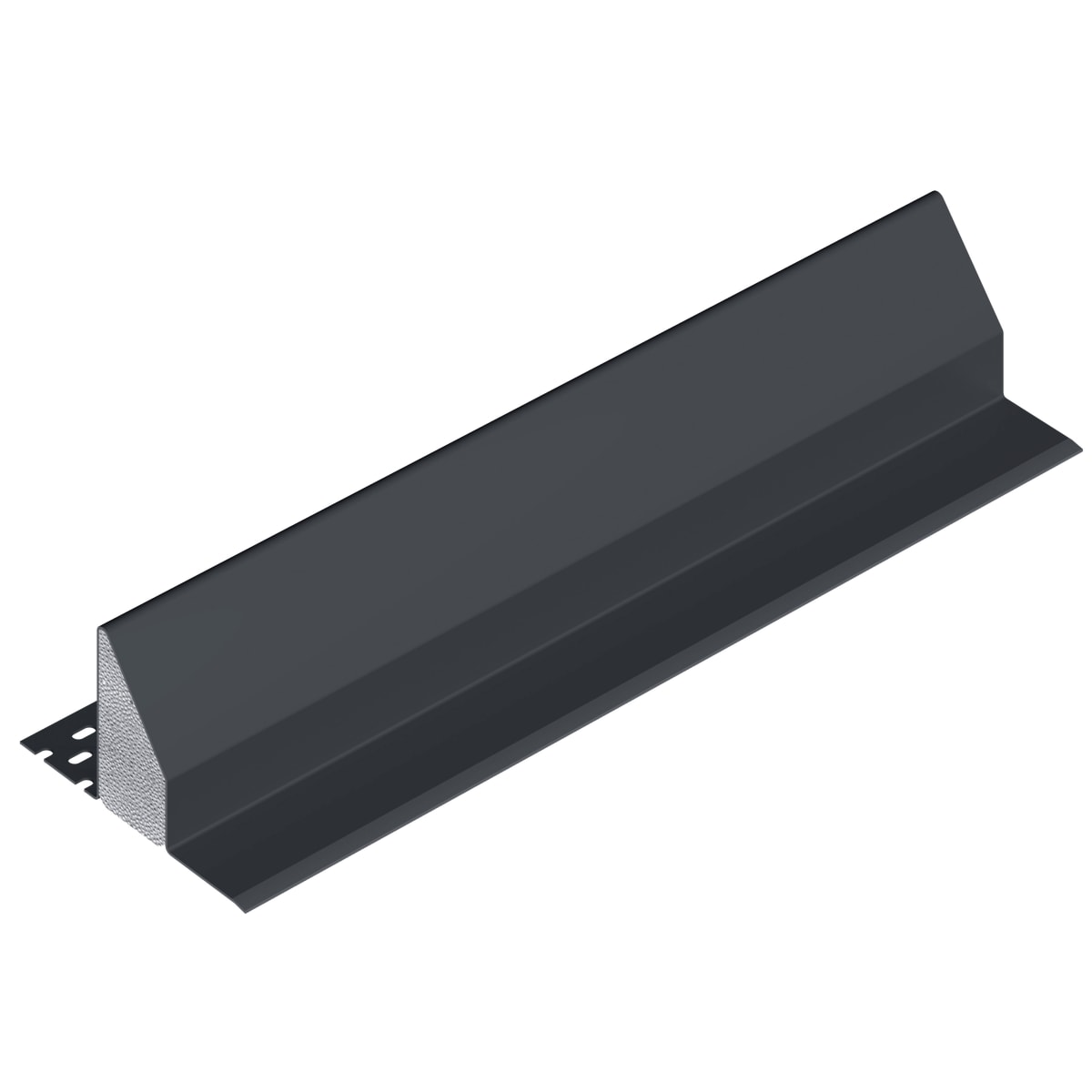

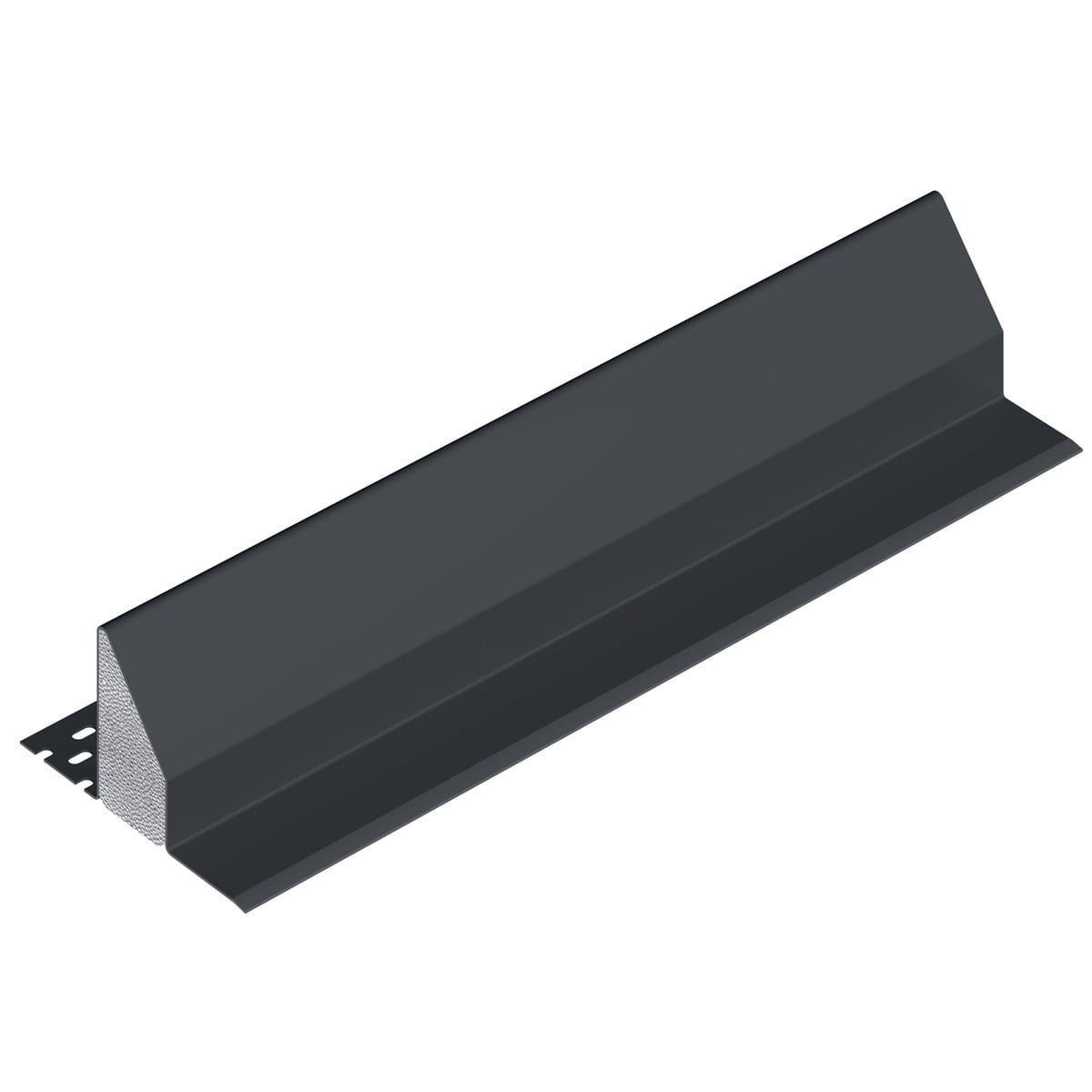

Catnic Cougar Cavity Wall Lintel 1800mm Black
SKU: LNCNE157
The Catnic Cougar Cavity Wall is designed to accommodate the requirements of all thin joint wall constructions. It measures 1800 x 140 x 283mm (L x H x W).The product is BBA approved under the agreement certificate no. 91/2638. Formed from galvanised steel, then powder coated for weather and abrasion resistance. The lintel is provided with integral plaster key with staggered slots applied to the inner flange and underside of insulation. The product supports the uniform distribution of masonry loads, timber floors and roof loads. The product is BBA approved under the agreement certificate no. 91/2638 and graded 304S15 to BS EN 10088-2-1.4301.
Features & benefits
- Duplex Corrosion Protection
- Built-in Plaster Key
- Built-in DPC
- Integral Insulation
- Standard lengths are available in increments of 150mm at lengths up to 1800mm, 300mm at lengths from 2100mm - 3600mm.
IDLNCNE157
Building Materials > Lintels > Steel Lintels > Catnic Cougar Cavity Wall Lintel 1800mm Black
https://www.jewson.co.uk/p/catnic-cougar-cavity-wall-lintel-1800mm-black-LNCNE157
Get lower prices with a Jewson account
£213.85
inc VAT, Each
178.21
http://schema.org/InStock
£118.81
per metre
Please sign in/register to save items.
The Catnic Cougar Cavity Wall is designed to accommodate the requirements of all thin joint wall constructions. It measures 1800 x 140 x 283mm (L x H x W).The product is BBA approved under the agreement certificate no. 91/2638. Formed from galvanised steel, then powder coated for weather and abrasion resistance. The lintel is provided with integral plaster key with staggered slots applied to the inner flange and underside of insulation. The product supports the uniform distribution of masonry loads, timber floors and roof loads. The product is BBA approved under the agreement certificate no. 91/2638 and graded 304S15 to BS EN 10088-2-1.4301.
Features & benefits
- Duplex Corrosion Protection
- Built-in Plaster Key
- Built-in DPC
- Integral Insulation
- Standard lengths are available in increments of 150mm at lengths up to 1800mm, 300mm at lengths from 2100mm - 3600mm.
Specifications
| Product Name | Catnic Cougar Cavity Wall Lintel 1800mm Black |
| Brand | Catnic |
| Manufacturer Name | Catnic |
| Manufacturer Part Number | CG90/1001800 |
| EAN | 5017586519180 |
| Compliance Approvals | BBA Certified |
| Warranty Period | 60 years |
| Materials | Galvanised Steel |
| Commercial Or Domestic Use | Both |
| Range | Cavity Wall Lintel |
| Colour | Black |
| Application | External |
| Pack Quantity | 1 |
| Country Of Origin | United Kingdom |
| Finish | Galvanised Steel Powder Coated |
| Recyclable | Yes |
| Product Width | 283 mm |
| Product Weight | 13.73 kg |
| Product Height | 140 mm |
| Product Length | 800 mm |
| Moisture Resistant | Yes |
