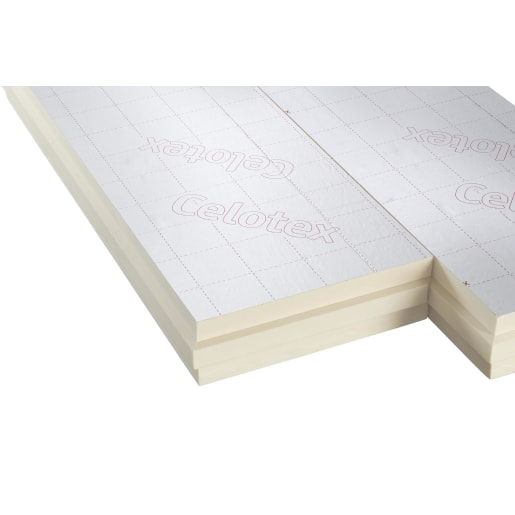

The Celotex Thermaclass Cavity Wall 21 Board 1190 x 450 x 90mm (L x W x T) is an easy to install polyisocyanurate (PIR) insulation board that has a high thermal performance with a thermal conductivity of 0.021 W/m.K. Suitable for full fill cavity wall applications, it can be installed with up to a 10mm residual cavity or as a full fill solution with no residual cavity. The board has a low emissivity foil facing to each side and features an engineered tongue and groove joint profile, helping to ensure a continuous layer of insulation to maximise thermal performance as well as providing protection from wind driven rain.
Click image to zoom in
Tap image to zoom in
Celotex Thermaclass Cavity Wall 21 Board 1190 x 450 x 90mm
SKU: CXTC1090
Features & benefits
- Lightweight
- Tongue and groove edge profile
- Low emissivity foil facing
- BBA approved – certificate 16/5343 (Full Fill Cavity Walls)
- Reaction to Fire: Euroclass E Reaction to Fire classification, according to EN 13501-1
IDCXTC1090
Building Materials > Insulation > Wall Insulation > Celotex Thermaclass Cavity Wall 21 Board 1190 x 450 x 90mm
https://www.jewson.co.uk/p/celotex-thermaclass-cavity-wall-21-board-1190-x-450-x-90mm-CXTC1090
Get lower prices with a Jewson account
£85.49
inc VAT, per sheet
71.24
http://schema.org/InStock
£159.63
per square metre
Please sign in/register to save items.
The Celotex Thermaclass Cavity Wall 21 Board 1190 x 450 x 90mm (L x W x T) is an easy to install polyisocyanurate (PIR) insulation board that has a high thermal performance with a thermal conductivity of 0.021 W/m.K. Suitable for full fill cavity wall applications, it can be installed with up to a 10mm residual cavity or as a full fill solution with no residual cavity. The board has a low emissivity foil facing to each side and features an engineered tongue and groove joint profile, helping to ensure a continuous layer of insulation to maximise thermal performance as well as providing protection from wind driven rain.
Features & benefits
- Lightweight
- Tongue and groove edge profile
- Low emissivity foil facing
- BBA approved – certificate 16/5343 (Full Fill Cavity Walls)
- Reaction to Fire: Euroclass E Reaction to Fire classification, according to EN 13501-1
Specifications
| Product Name | Celotex Thermaclass Cavity Wall 21 Board 1190 x 450 x 90mm |
| Brand | Thermaclass |
| Manufacturer Name | Saint-Gobain |
| Manufacturer Part Number | TC1090 |
| EAN | 5060489710963 |
| Compliance Approvals | BBA Approved |
| Warranty Period | 12 months |
| Materials | Polyisocyanurate |
| Commercial Or Domestic Use | Both |
| Range | PIR Insulation Board |
| Model Number | TC1090 |
| Application | Interior |
| Pack Quantity | 1 |
| Applicable Standards | ISO 9001 |
| Coverage | 0.5355 m2 |
| Recyclable | Yes |
| Renewable | No |
| Product Width | 190 mm |
| Product Weight | 2.8 kg/m2 |
| Product Length | 1190 mm |
| Thickness | 90 mm |
| Thermal Conductivity | 0.021 W/mK |
| R Value | 4.25 m2K/W |
