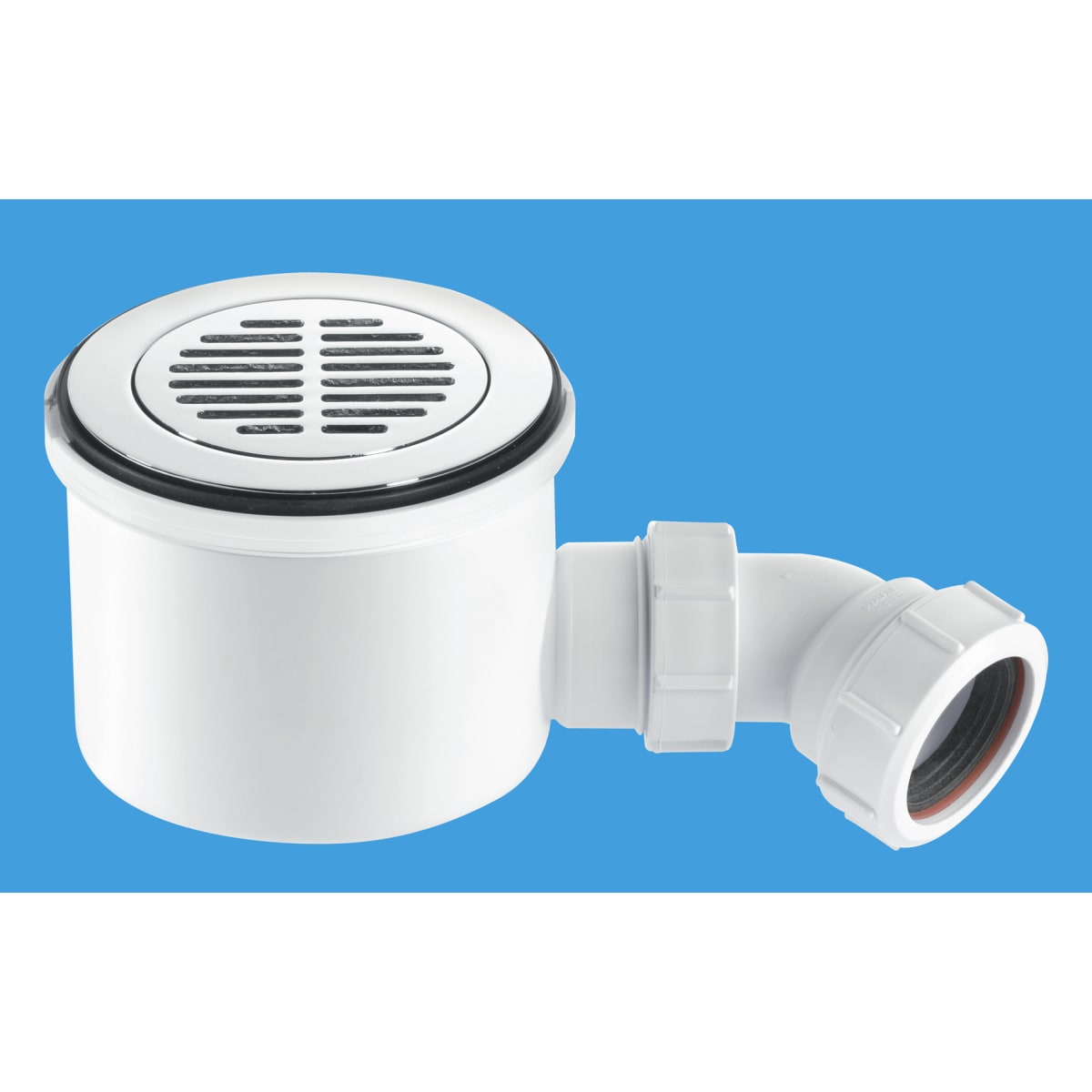

McAlpine 1½" Hi-Flow Shower Trap 90 x 50mm with Chrome Plated Brass Slotted Removable Flange
SKU: PMPBSHP2
McAlpine 1½" 90mm Hi-Flow Shower Trap with chrome plated brass slotted removable Flange for easy cleaning. This trap is for shower trays with a 90mm waste hole and tray thickness 5-14mm. Its supplied with a 135° Bend with nut. This trap has a flow rate 42 l/min when tested under a constant 15mm head of water in accordance with clause 5 of BS EN 274-2:2002. There is also a longer flange available (P-CPB-ST90-S50-43) and this flange is suitable for tray thickness of 21-30mm.
Features & benefits
- Flanges available in White or Chrome Plated Plastic, or Chrome Plated Brass
- Suitable for shower trays with a 90mm waste hole
- 50mm Water Seal
- 1½" BSP Thread
- Supplied with 135° Bend - BSP coupling nut x 1½" Universal
- Removable 110mm flange facilitates easy cleaning
- Flow rate 42 l/min when tested under a constant 15mm head of water in accordance with clause 5 of BS EN 274-2:2002
- Overall height 90mm
- Constructed from polypropylene
- 90mm under-tray dimension
IDPMPBSHP2
Electrics & Plumbing > Drainage > Below Ground Drainage > McAlpine 1½" Hi-Flow Shower Trap 90 x 50mm with Chrome Plated Brass Slotted Removable Flange
https://www.jewson.co.uk/p/mcalpine-1-hi-flow-shower-trap-90-x-50mm-with-chrome-plated-brass-slotted-removable-flange-PMPBSHP2
Get lower prices with a Jewson account
£53.90
inc VAT, Each
44.92
http://schema.org/InStock
Please sign in/register to save items.
McAlpine 1½" 90mm Hi-Flow Shower Trap with chrome plated brass slotted removable Flange for easy cleaning. This trap is for shower trays with a 90mm waste hole and tray thickness 5-14mm. Its supplied with a 135° Bend with nut. This trap has a flow rate 42 l/min when tested under a constant 15mm head of water in accordance with clause 5 of BS EN 274-2:2002. There is also a longer flange available (P-CPB-ST90-S50-43) and this flange is suitable for tray thickness of 21-30mm.
Features & benefits
- Flanges available in White or Chrome Plated Plastic, or Chrome Plated Brass
- Suitable for shower trays with a 90mm waste hole
- 50mm Water Seal
- 1½" BSP Thread
- Supplied with 135° Bend - BSP coupling nut x 1½" Universal
- Removable 110mm flange facilitates easy cleaning
- Flow rate 42 l/min when tested under a constant 15mm head of water in accordance with clause 5 of BS EN 274-2:2002
- Overall height 90mm
- Constructed from polypropylene
- 90mm under-tray dimension
Specifications
| Product Name | McAlpine 1½" Hi-Flow Shower Trap 90 x 50mm with Chrome Plated Brass Slotted Removable Flange |
| Brand | McAlpine |
| Product Type | Shower Trap |
| Manufacturer Name | McAlpine & Co Ltd |
| Manufacturer Part Number | ST90CPB-S-HP2 |
| EAN | 5036484048912 |
| Warranty Period | 12 months |
| Materials | Polypropylene |
| Commercial Or Domestic Use | Both |
| Model Number | ST90CPB-S-HP2 |
| Colour Family | Metals |
| Colour | Chrome |
| Application | Interior |
| Pack Quantity | 1 |
| Country Of Origin | United Kingdom |
| Applicable Standards | BS EN 274-2:2002 |
| Finish | Chrome Plated Brass |
| Recyclable | No |
| Renewable | No |
| Product Width | 118 mm |
| Product Weight | 0.764 kg |
| Product Height | 210 mm |
| Product Length | 135 mm |
| Volume | 0.0033 m3 |
| Jointing System | Compression |
| Connector Type | female |
