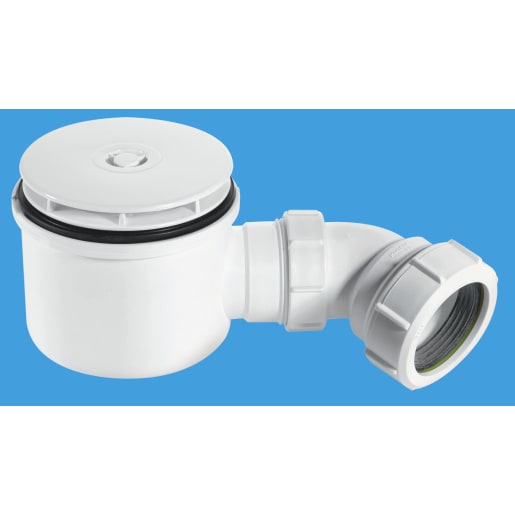

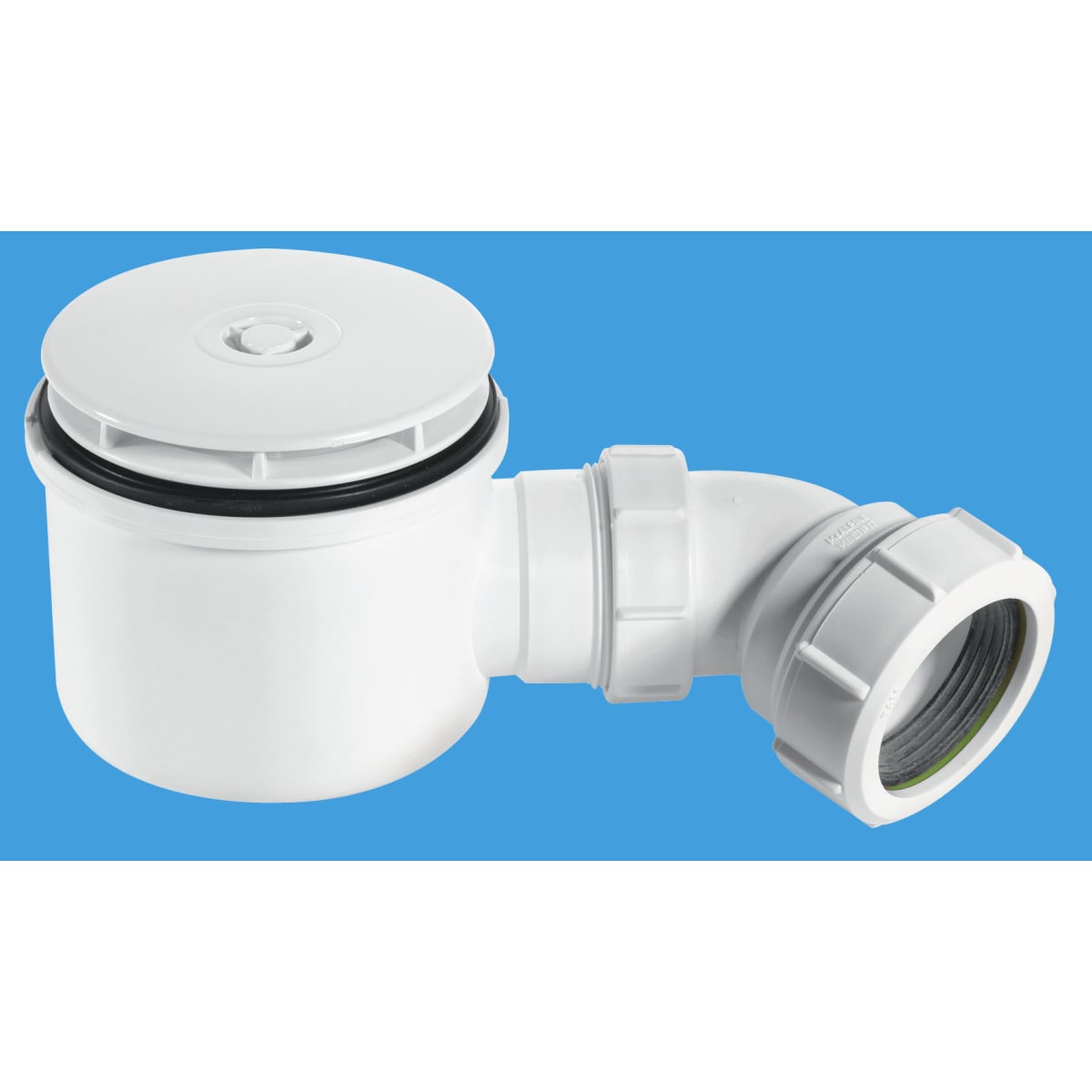

McAlpine Hi-Flow Water Seal Shower Trap with 2" Universal Outlet - Removable 110mm Flange
SKU: PMWH10HP
McAlpine 1½" 90mm Hi-Flow Shower Trap with a white plastic removable Flange for easy cleaning. This trap is for shower trays with a 90mm waste hole and tray thickness 4-15mm. Its supplied with a 135° Bend with nut. This trap has a flow rate 42 l/min when tested under a constant 15mm head of water in accordance with clause 5 of BS EN 274-2:2002.
Features & benefits
- Flanges available in White or Chrome Plated Plastic, or Chrome Plated Brass
- Suitable for shower trays with a 90mm waste hole
- 50mm Water Seal
- 1½" BSP Thread
- Supplied with 135° Bend - BSP coupling nut x 2" Universal
- Removable 110mm flange facilitates easy cleaning
- Flow rate 50 l/min when tested under a constant 15mm head of water in accordance with clause 5 of BS EN 274-2:2002
- Overall height 90mm
- Suit trays with maximum thickness of 15mm
- Constructed from polypropylene
IDPMWH10HP
Electrics & Plumbing > Drainage > Below Ground Drainage > McAlpine Hi-Flow Water Seal Shower Trap with 2" Universal Outlet - Removable 110mm Flange
https://www.jewson.co.uk/p/mcalpine-hi-flow-water-seal-shower-trap-with-2-universal-outlet-removable-110mm-flange-PMWH10HP
Get lower prices with a Jewson account
£69.35
inc VAT, Each
57.79
http://schema.org/InStock
Please sign in/register to save items.
McAlpine 1½" 90mm Hi-Flow Shower Trap with a white plastic removable Flange for easy cleaning. This trap is for shower trays with a 90mm waste hole and tray thickness 4-15mm. Its supplied with a 135° Bend with nut. This trap has a flow rate 42 l/min when tested under a constant 15mm head of water in accordance with clause 5 of BS EN 274-2:2002.
Features & benefits
- Flanges available in White or Chrome Plated Plastic, or Chrome Plated Brass
- Suitable for shower trays with a 90mm waste hole
- 50mm Water Seal
- 1½" BSP Thread
- Supplied with 135° Bend - BSP coupling nut x 2" Universal
- Removable 110mm flange facilitates easy cleaning
- Flow rate 50 l/min when tested under a constant 15mm head of water in accordance with clause 5 of BS EN 274-2:2002
- Overall height 90mm
- Suit trays with maximum thickness of 15mm
- Constructed from polypropylene
Specifications
| Product Name | McAlpine Hi-Flow Water Seal Shower Trap with 2" Universal Outlet - Removable 110mm Flange |
| Brand | McAlpine |
| Product Type | Shower Trap |
| Manufacturer Name | McAlpine & Co Ltd |
| Manufacturer Part Number | ST90WH10-HP |
| EAN | 5036484043832 |
| Warranty Period | 12 months |
| Materials | Polypropylene |
| Commercial Or Domestic Use | Both |
| Model Number | ST90WH10-HP |
| Colour Family | Whites |
| Colour | White |
| Application | Interior |
| Pack Quantity | 1 |
| Country Of Origin | United Kingdom |
| Applicable Standards | BS EN 274-2:2002 |
| Finish | White Plastic |
| Recyclable | No |
| Renewable | No |
| Product Width | 118 mm |
| Product Weight | 0.496 kg |
| Product Height | 105 mm |
| Product Length | 250 mm |
| Volume | 0.0031 m3 |
| Jointing System | Compression |
| Connector Type | female |
