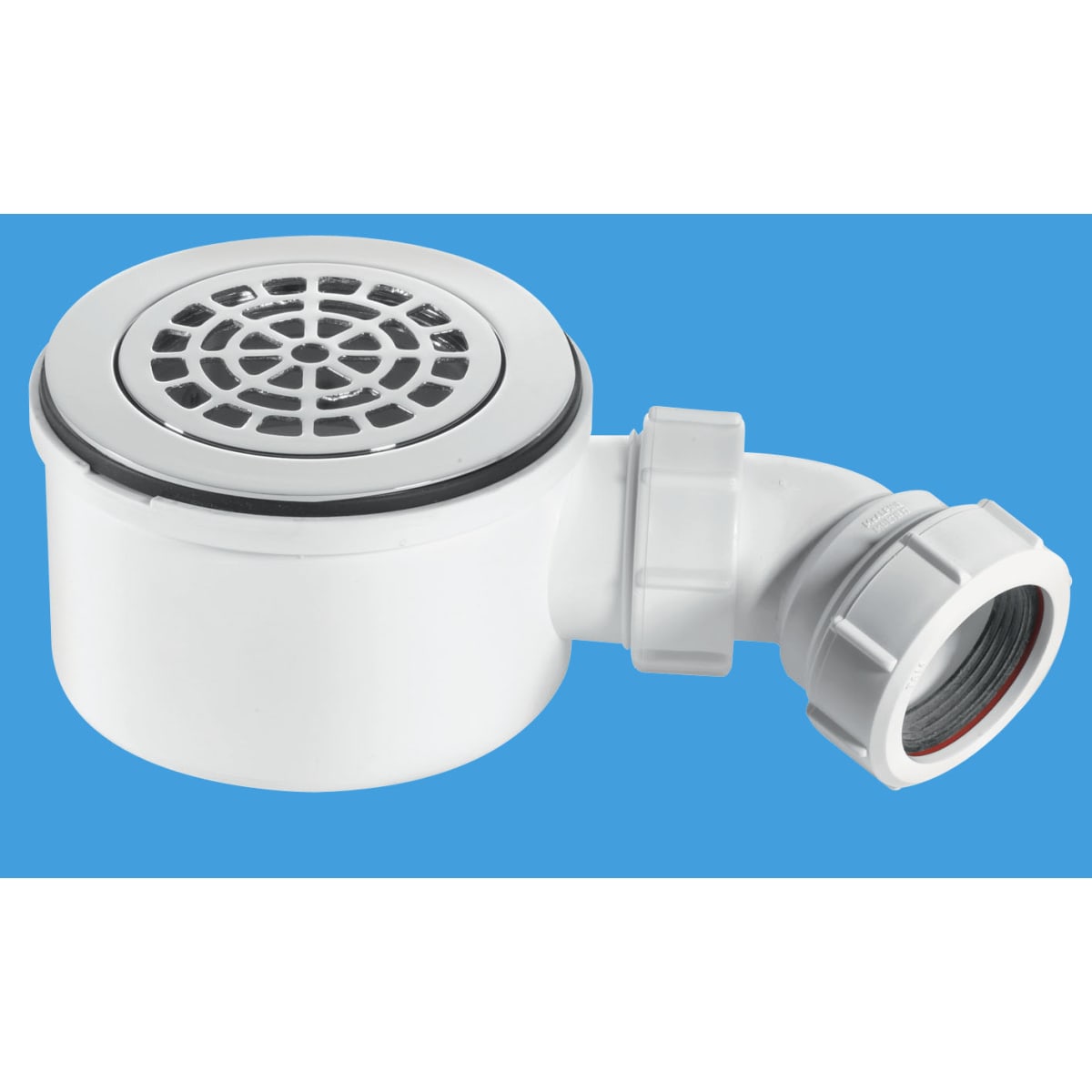

McAlpine Water Seal 90mm Shallow Shower Trap with 1½" Outlet and Removable CP Brass Petal Flange
SKU: PMCPBP70
McAlpine 90mm Shallow Shower Trap with removable chrome plated brass Petal Flange. This trap is for shower trays with a 90mm waste hole and tray thickness 5-30mm. Its supplied with a 135° Bend with nut. This trap has a flow rate 34 l/min when tested under a constant 15mm head of water in accordance with clause 5 of BS EN 274-2:2002.
Features & benefits
- Flanges available in White or Chrome Plated Plastic, or Chrome Plated Brass
- Suitable for shower trays with a 90mm waste hole
- 50mm Water Seal
- 1½" BSP Thread
- Supplied with 135° Bend - BSP coupling nut x 1½" Universal
- Removable 110mm flange facilitates easy cleaning
- Flow rate 34 l/min when tested under a constant 15mm head of water in accordance with clause 5 of BS EN 274-2:2002
- Overall height is only 70mm
- Constructed from polypropylene
- Conforms to BS EN 274-1:2002
IDPMCPBP70
Electrics & Plumbing > Drainage > Below Ground Drainage > McAlpine Water Seal 90mm Shallow Shower Trap with 1½" Outlet and Removable CP Brass Petal Flange
https://www.jewson.co.uk/p/mcalpine-water-seal-90mm-shallow-shower-trap-with-1-outlet-and-removable-cp-brass-petal-flange-PMCPBP70
Get lower prices with a Jewson account
£84.34
inc VAT, Each
70.28
http://schema.org/InStock
Please sign in/register to save items.
McAlpine 90mm Shallow Shower Trap with removable chrome plated brass Petal Flange. This trap is for shower trays with a 90mm waste hole and tray thickness 5-30mm. Its supplied with a 135° Bend with nut. This trap has a flow rate 34 l/min when tested under a constant 15mm head of water in accordance with clause 5 of BS EN 274-2:2002.
Features & benefits
- Flanges available in White or Chrome Plated Plastic, or Chrome Plated Brass
- Suitable for shower trays with a 90mm waste hole
- 50mm Water Seal
- 1½" BSP Thread
- Supplied with 135° Bend - BSP coupling nut x 1½" Universal
- Removable 110mm flange facilitates easy cleaning
- Flow rate 34 l/min when tested under a constant 15mm head of water in accordance with clause 5 of BS EN 274-2:2002
- Overall height is only 70mm
- Constructed from polypropylene
- Conforms to BS EN 274-1:2002
Specifications
| Product Name | McAlpine Water Seal 90mm Shallow Shower Trap with 1½" Outlet and Removable CP Brass Petal Flange |
| Brand | McAlpine |
| Product Type | Shower Trap |
| Manufacturer Name | McAlpine & Co Ltd |
| Manufacturer Part Number | ST90CPB-P-70 |
| EAN | 5036484043863 |
| Warranty Period | 12 months |
| Materials | Polypropylene |
| Commercial Or Domestic Use | Both |
| Model Number | ST90CPB-P-70 |
| Colour Family | Whites |
| Colour | White |
| Application | Interior |
| Pack Quantity | 1 |
| Country Of Origin | United Kingdom |
| Applicable Standards | BS EN 274-1:2002, BS EN 274-2:2002 |
| Finish | Chrome Plated Brass |
| Recyclable | No |
| Renewable | No |
| Product Width | 118 mm |
| Product Weight | 0.673 kg |
| Product Height | 108 mm |
| Product Length | 210 mm |
| Volume | 0.0027 m3 |
| Jointing System | Compression |
| Connector Type | female |
