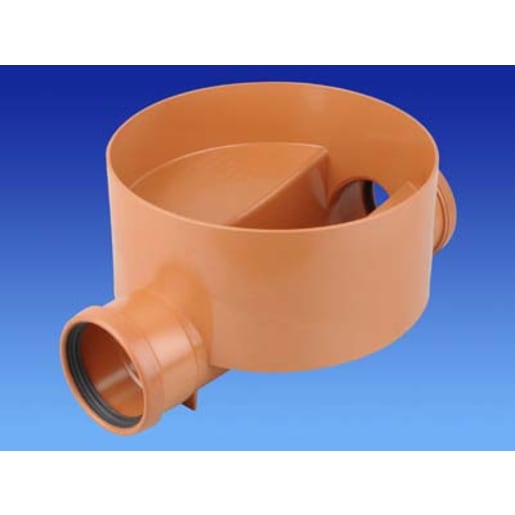

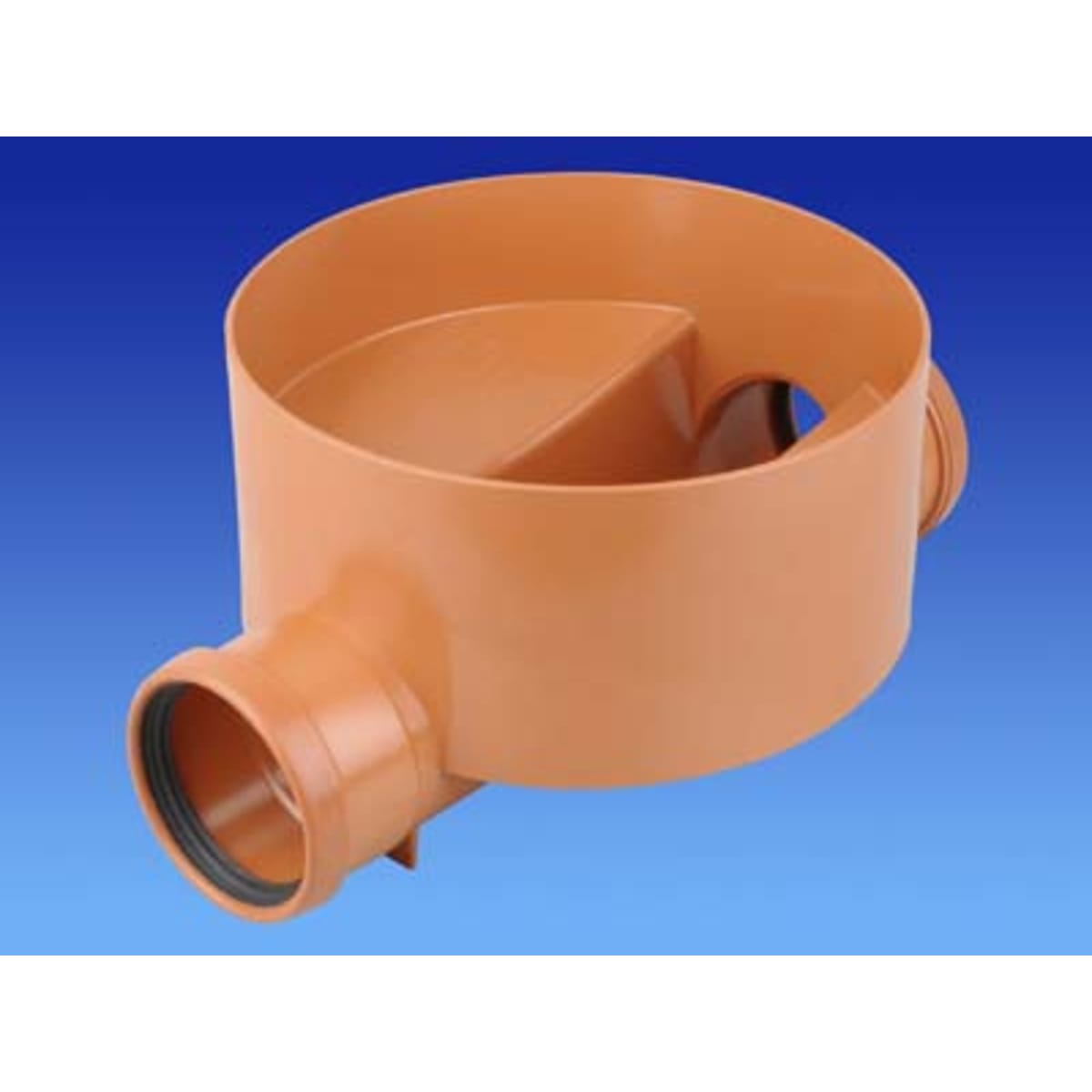

Osma Multi-Base Inspection Chamber Straight Channel 473 x 205 x 110mm
SKU: PO4D910Z
The Osma Multi-Base Inspection Chamber Straight Channel measures 473 x 205 x 110mm (L x W x Dia) available in brown colour. It has a straight channel with 110mm x 45 degree and 110mm x 90-degree left-hand branch entry where this is used with 110mm OsmaDrain components. This product is manufactured from polyvinyl chloride material which is strong and is used in constructions. It is softer and more flexible. This is a choice of 10 base configuration to achieve the most suitable and is also a cost-effective solution. It has a loading application of 1.50 tonnes. The elastomeric seal for pipe joints used in water and drainage applications. This is lightweight quick and easy to install.
Features & benefits
- Polyvinyl Chloride material helps in abrasion resistance
- Specially designed to enable easy cleaning
- Conforms to BS EN 681-1
IDPO4D910Z
Electrics & Plumbing > Drainage > Below Ground Drainage > Osma Multi-Base Inspection Chamber Straight Channel 473 x 205 x 110mm
https://www.jewson.co.uk/p/osma-multi-base-inspection-chamber-straight-channel-473-x-205-x-110mm-PO4D910Z
Get lower prices with a Jewson account
£61.75
inc VAT, Each
51.46
http://schema.org/InStock
Please sign in/register to save items.
The Osma Multi-Base Inspection Chamber Straight Channel measures 473 x 205 x 110mm (L x W x Dia) available in brown colour. It has a straight channel with 110mm x 45 degree and 110mm x 90-degree left-hand branch entry where this is used with 110mm OsmaDrain components. This product is manufactured from polyvinyl chloride material which is strong and is used in constructions. It is softer and more flexible. This is a choice of 10 base configuration to achieve the most suitable and is also a cost-effective solution. It has a loading application of 1.50 tonnes. The elastomeric seal for pipe joints used in water and drainage applications. This is lightweight quick and easy to install.
Features & benefits
- Polyvinyl Chloride material helps in abrasion resistance
- Specially designed to enable easy cleaning
- Conforms to BS EN 681-1
Specifications
| Product Name | Osma Multi-Base Inspection Chamber Straight Channel 473 x 205 x 110mm |
| Brand | Osma |
| Manufacturer Name | Wavin |
| Manufacturer Part Number | 4D910 |
| EAN | 5098987041050 |
| Compliance Approvals | BS EN 7158 and 13598 & BS EN 1401-1 |
| Warranty Period | 12 months |
| Materials | PVC |
| Commercial Or Domestic Use | Both |
| Range | Inspection Chamber |
| Model Number | 4D910 |
| Colour | Red brown |
| Application | internal/external |
| Pack Quantity | 1 |
| Country Of Origin | Ireland |
| Finish | Smooth |
| Recyclable | Yes |
| Renewable | No |
| Product Width | 205 mm |
| Product Weight | 2.1 kg |
| Product Height | 324 mm |
| Product Length | 473 mm |
| Diameter | 110 mm |
| Moisture Resistant | Yes |
