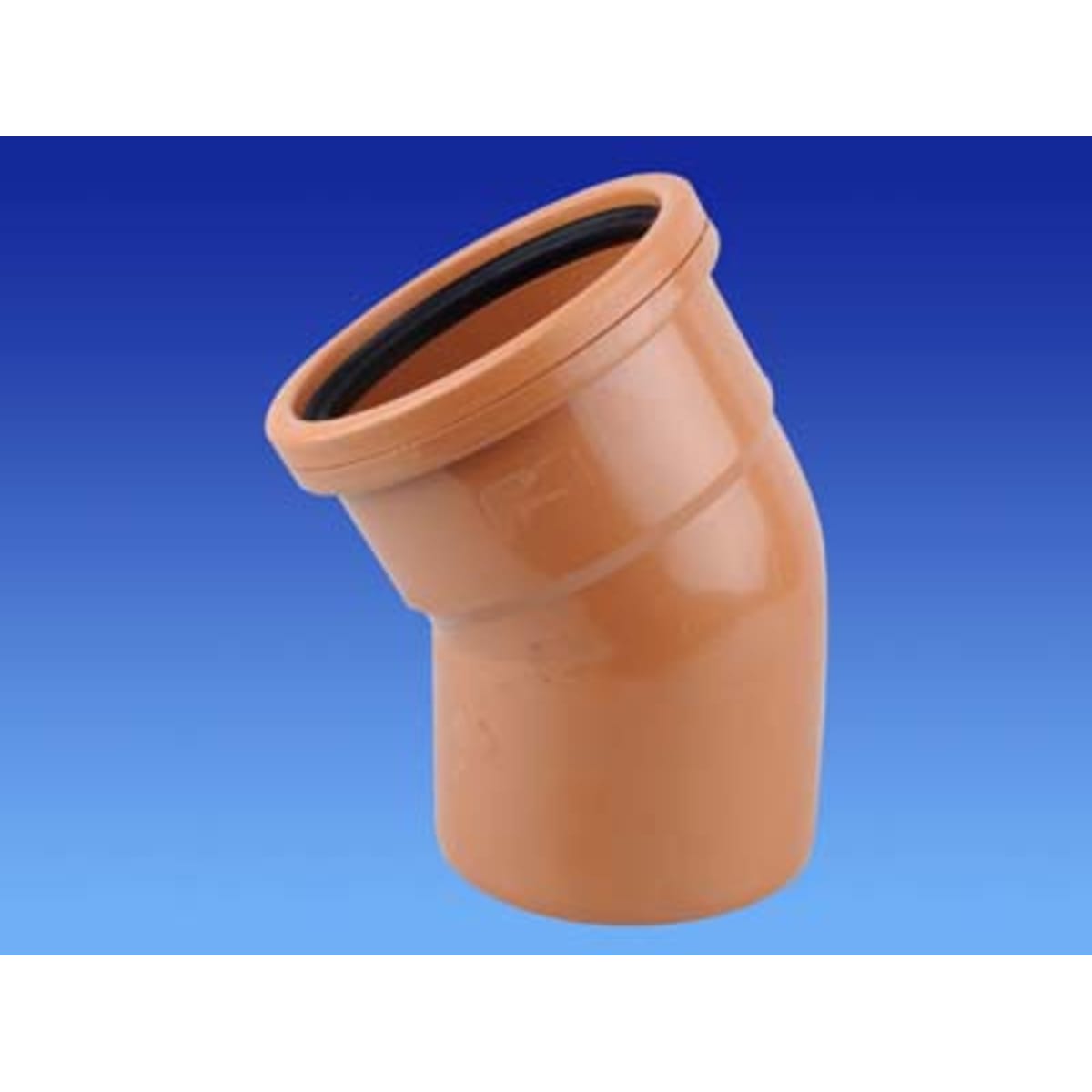

OsmaDrain 30° Single Socket Bend 75 x 160mm Brown
SKU: PO6D166Z
The OsmaDrain Single Socket 30° Bend 75 x 160mm (L x Dia) Brown is designed with stiffness class of SN8. The product is manufactured from uPVC and is used for drainage applications at depth of 10m. The bends are easy to demount. This bend is supplied with sockets on all ends. The sockets are fitted with ring seals which act as both sealing and expansion joint. The pipe installation is done by cutting it cleanly, at right angles to its axis and then fitting at one end through push fit system. It is designed with wall thickness of 4.1mm and bow range of 150mm.
Features & benefits
- Recyclable
- Abrasion resistant
IDPO6D166Z
Electrics & Plumbing > Drainage > Below Ground Drainage > OsmaDrain 30° Single Socket Bend 75 x 160mm Brown
https://www.jewson.co.uk/p/osmadrain-single-socket-30-degrees-bend-75-x-160mm-brown-PO6D166Z
Get lower prices with a Jewson account
£56.88
inc VAT, Each
47.4
http://schema.org/InStock
Please sign in/register to save items.
The OsmaDrain Single Socket 30° Bend 75 x 160mm (L x Dia) Brown is designed with stiffness class of SN8. The product is manufactured from uPVC and is used for drainage applications at depth of 10m. The bends are easy to demount. This bend is supplied with sockets on all ends. The sockets are fitted with ring seals which act as both sealing and expansion joint. The pipe installation is done by cutting it cleanly, at right angles to its axis and then fitting at one end through push fit system. It is designed with wall thickness of 4.1mm and bow range of 150mm.
Features & benefits
- Recyclable
- Abrasion resistant
Specifications
| Product Name | OsmaDrain 30° Single Socket Bend 75 x 160mm Brown |
| Brand | Osma |
| Manufacturer Name | Wavin |
| Manufacturer Part Number | 6D166 |
| EAN | 5011479108826 |
| Compliance Approvals | BS EN 13476 & BS EN 1401-1 |
| Warranty Period | 12 months |
| Materials | PVC-U |
| Commercial Or Domestic Use | Both |
| Range | Single Socket Bend |
| Model Number | 6D166 |
| Colour | Golden brown |
| Application | internal/external |
| Pack Quantity | 1 |
| Country Of Origin | United Kingdom |
| Finish | Smooth |
| Recyclable | Yes |
| Renewable | No |
| Product Width | 190 mm |
| Product Weight | 0.91 kg |
| Product Height | 272 mm |
| Product Length | 272 mm |
| Diameter | 160 mm |
| Moisture Resistant | Yes |
| Angle | 30 degrees |
