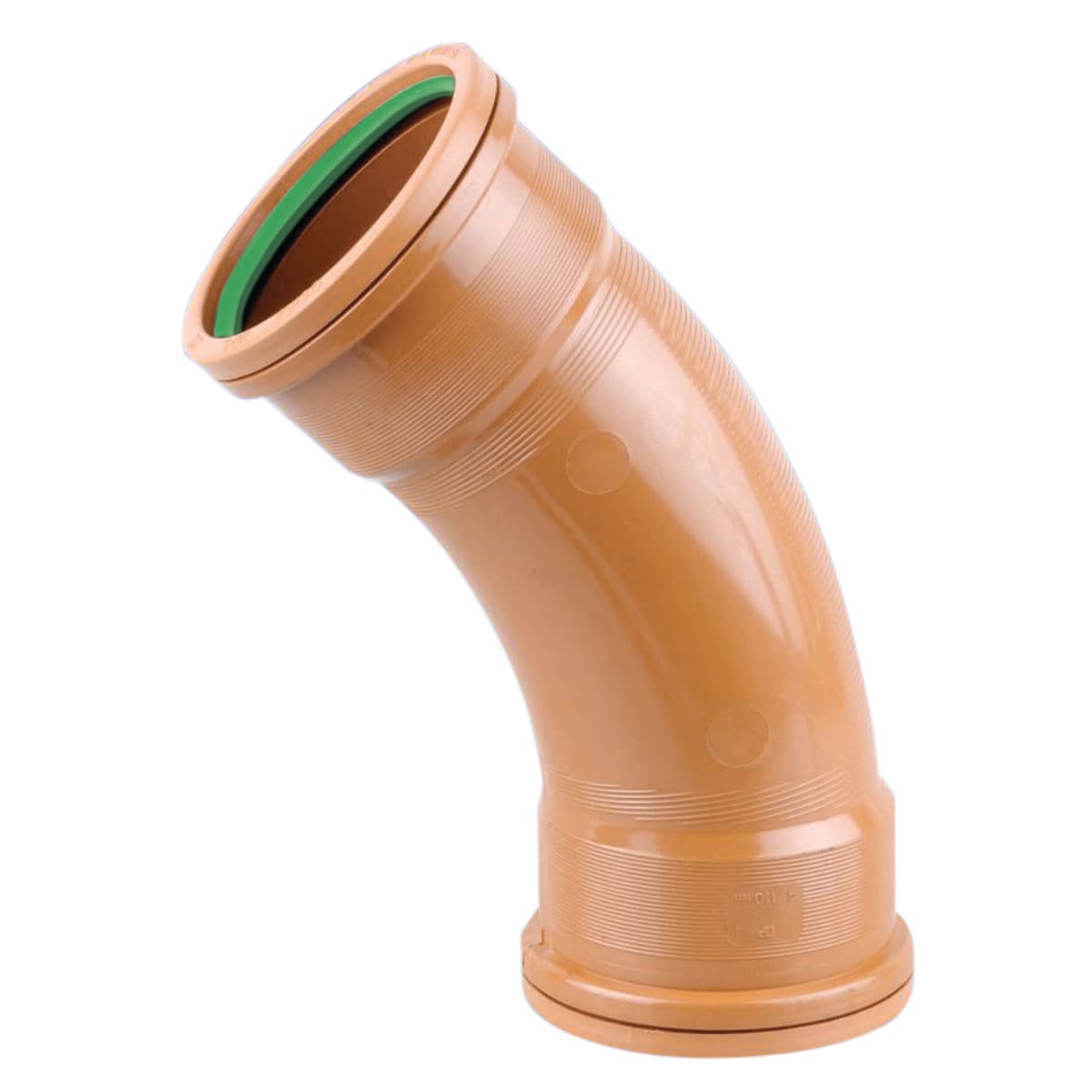

Wavin OsmaDrain D/S Long Radius Bend 45° 110mm
SKU: PO4D583Z
Wavin OsmaDrain, foul and surface water drainage system for use in gravity drainage applications at depths of up to 10m
Features & benefits
- With ring-seal sockets at each end
- Connects Wavin OsmaDrain pipe at 45°
- With cut out marks to convert bend to a channel
- When converted can be used within traditional manholes
- Kitemarked
- Volume 5.833 CD3
IDPO4D583Z
Electrics & Plumbing > Drainage > Below Ground Drainage > Wavin OsmaDrain D/S Long Radius Bend 45° 110mm
https://www.jewson.co.uk/p/wavin-osmadrain-ds-long-radius-bend-45-110mm-PO4D583Z
Get lower prices with a Jewson account
£45.78
inc VAT, Each
38.15
http://schema.org/InStock
Please sign in/register to save items.
Wavin OsmaDrain, foul and surface water drainage system for use in gravity drainage applications at depths of up to 10m
Features & benefits
- With ring-seal sockets at each end
- Connects Wavin OsmaDrain pipe at 45°
- With cut out marks to convert bend to a channel
- When converted can be used within traditional manholes
- Kitemarked
- Volume 5.833 CD3
Specifications
| Product Name | Wavin OsmaDrain D/S Long Radius Bend 45° 110mm |
| Brand | Wavin Osma |
| Product Type | Bend |
| Manufacturer Name | Wavin Ltd |
| Manufacturer Part Number | 4D583 |
| EAN | 5011479108413 |
| Compliance Approvals | BS EN 13476- 2, BS EN 1401-1 2009, BS 4660:1989/2000 |
| Warranty Period | 12 months |
| Materials | PVC-U |
| Commercial Or Domestic Use | Both |
| Model Number | 4D583 |
| Colour | Orange brown |
| Application | Below Ground |
| Pack Quantity | 1 |
| Country Of Origin | GB |
| Recyclable | Yes |
| Renewable | No |
| Product Width | 200 mm |
| Product Weight | 0.695 kg |
| Product Height | 200 mm |
| Product Length | 217 mm |
| Product Depth | 200 mm |
| Diameter | 110 mm |
| Thickness | 3.2 mm |
| Jointing System | Push_Fit |
| Angle | 45 degrees |
